G-NetLook Pro

G-NetLook Pro is an Android app for mobile network optimization.
It can be used for visualization of mobile network, neighbor cells planning, antenna tilt adjustment and postprocessing of G-NetTrack Pro logfiles or measurements from your own database.

This is one-time payment app. There are no monthly fees.

See video demo here - https://www.youtube.com/watch?v=LgerYuEyDxk&list=PLeZ3lA81P9ETdfOnZK224oqIOIjJ_FBj0

The app is useful for engineers working in Radio Planning and Optimization.
If you are just interested in analyzing drivetest logfiles you can try G-NetView - https://play.google.com/store/apps/details?id=com.gyokovsolutions.gnetviewpro

Features:

1.Mobile network visualization
- cell visualization on the map
- neighbor cells visualization
- cell data information display
- neighbor relations analysis - distance and reciprocity check
- cell search

IMPORTANT: Please note that to visualize serving and neighbors cell you need to load cellfile with cell locations. There is no magical way to guess exact cell locations.

2.Postprocessing of G-NetTrack logfiles or measurements from your own database
- logfile visualization on map
- serving and neighbor cell lines visualization
- thematic maps - LEVEL, QUAL, CELL, TECH, PCI/PSC/BSIC, SNR, BITRATE, SPEED, ALTITUDE, SERVING DISTANCE, BEARING, ANTENNA HEIGHT, ARFCN, PING, BITRATES, NEIGHBORS LEVEL, NEIGHBORS QUAL
- measurement point info
- measurements charts
- measurements histogram statistics charts
- export of measurement charts and statistics in html format to be viewed on desktop browser
- logfile player
- floorplan load for indoor measurements
- load several text logfiles and export combined kml files according to Settings - Legend thresholds

3.Neighbors Analyzer - can be used in two ways:
- for automatic neighbor cells planning
- for missing neighbor cells detection
See video demo - https://www.youtube.com/watch?v=pIdhGWcuRJc

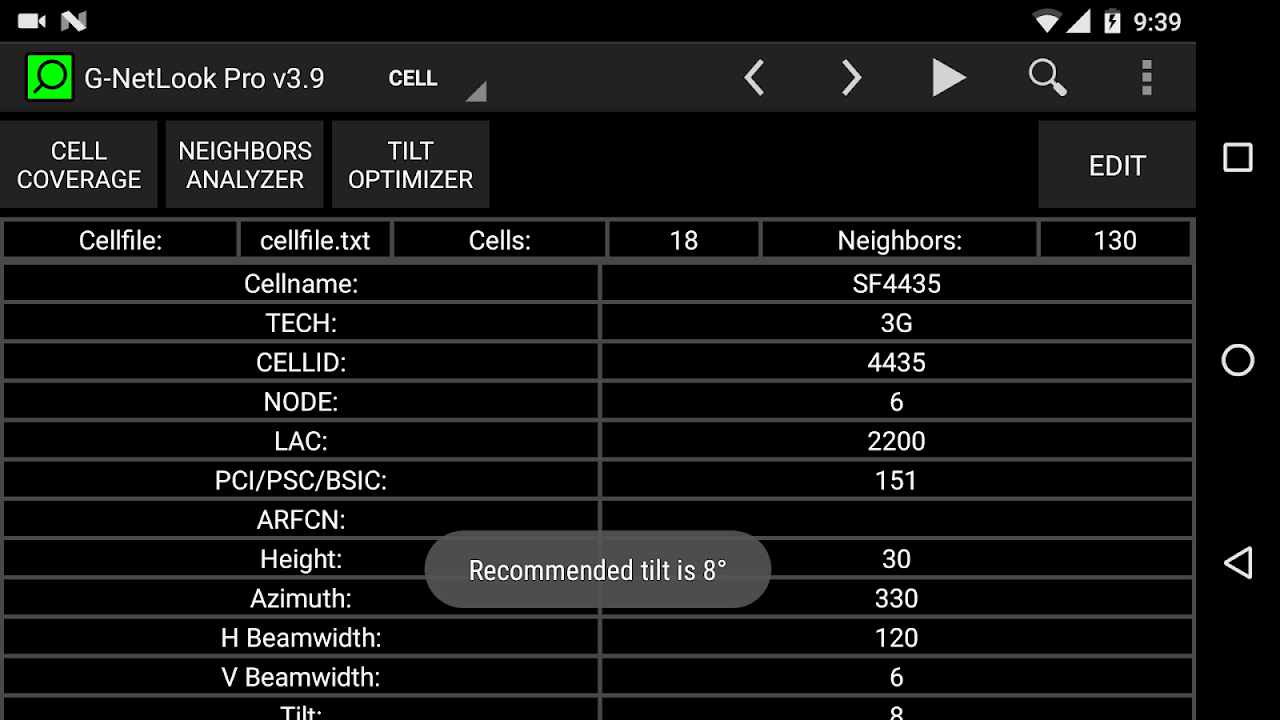

4. Tilt Optimizer - for antenna tilt automatic calculation
See video demo - https://www.youtube.com/watch?v=EtzUAp8czBk

5. Antenna tilt adjustment - export of antenna beamwidth planes in kml format for visualization in Google Earth.
See demo video - https://www.youtube.com/watch?v=-5N58M9lmjQ
- cell coverage - kml export of one cell with option to change tilt, beamwidth and height
- multi cell coverage - kml export of several cells - the kml is organized in technology and cell layer.
The kml file contains three planes:
- central (max power) - angle=tilt
- upper (-3dB) - angle = tilt-verticalbeamwidth/2
- lower (-3dB) - angle = tilt+verticalbeamwidth/2

6. Exports
- cell and neighbor relations export in text and kml format - See video demo - https://www.youtube.com/watch?v=P2VdXLba310
- option to include missing neighbors in export

7. Online database data. You can use your own database using G-NetReport Pro for Android or public G-NetReport database.
- load measurements from online database
- load cell data

How to create your database and set the app to use it:
- download scripts - http://www.gyokovsolutions.com/downloads/scripts/gnetlook_scripts.rar
- for measurement data use G-NetReport Pro. For reading logdata from database the script logdata.php is used.
- for cell data use create_celltable.txt script to create table called 'cells' in your database. For reading celldata from database the script sitedata.php is used. the script in Settings -

Database setup - https://gyokovsolutions.com/g-netlook-pro/

Check also:
G-NetLook Web - web app for visualization and analysis of mobile network - https://gyokovsolutions.com/G-NetLook

G-NetReport Pro - similar to G-NetTrack Pro, but you can send reports in real time to your own online database and organize your measurement fleet of reporting phones - https://play.google.com/store/apps/details?id=com.gyokovsolutions.gnetreportpro
